JR Machinery

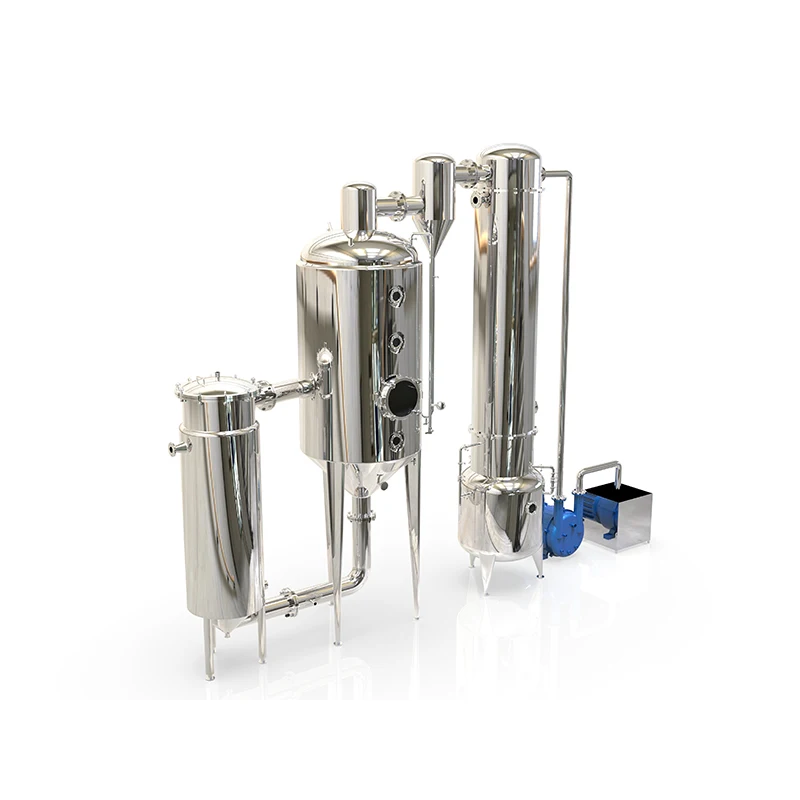

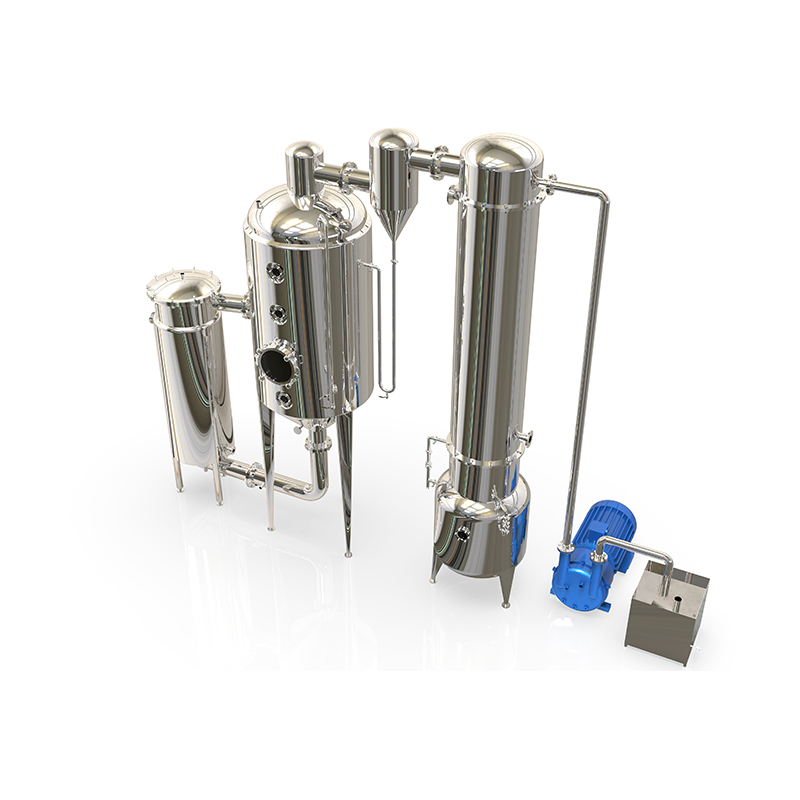

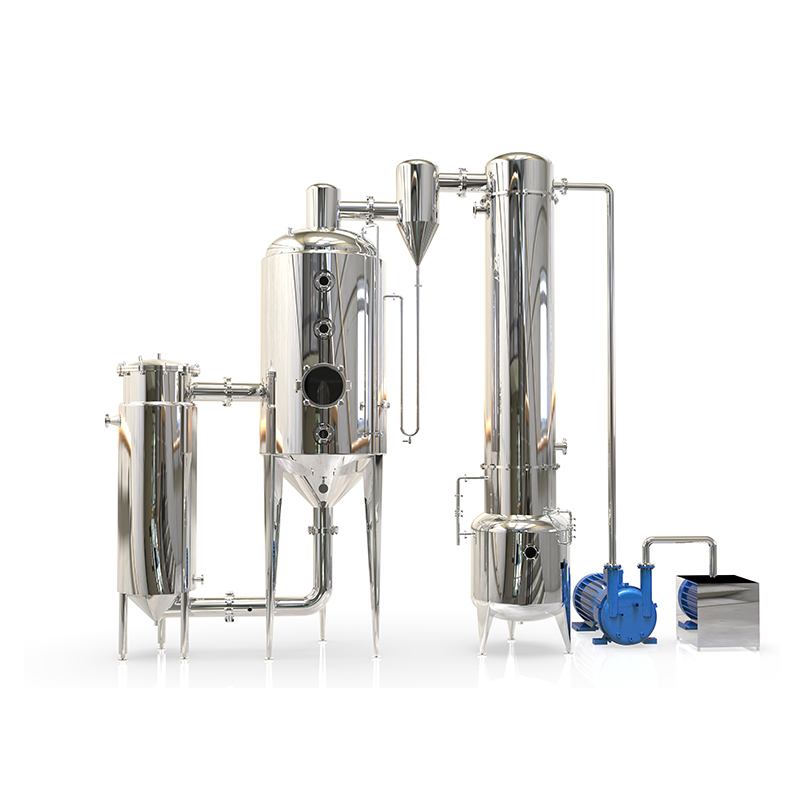

| Title | Stainless Steel Single-effect External Circulation Honey Juice Milk Vacuum Evaporator Vacuum Concentrator | |
| Product Name | Vacuum Evaporator Concentrator | |
| Size | 100L-2000L | |
| Material | SS304,SS316L | |
| Heating Model | Steam | |
| Steam consumption(Kg/H) | 115-2200 | |
| Cooling water consumption(Kg/H) | 1500-30000 | |
| Steam pressure(Mpa) | 0.03-0.09 | |
| Vacuum pressure(Mpa) | -0.05~-0.08 | |
| Tank configuration | Vacuum pump | CIP cleaning ball |
| Heating chamber | Evaporation chamber | |
| Condenser | Gas-liquid separator | |
| Advantage | 1. Short concentration time | |
| Processing materials | Juice, Jam, Syrup, Herbal | |
| Application | Herbal, Food industry, Etc | |
Service | Product Service | ODM, OEM,Customized according to drawing |
| Material certificate,Inspection certificate | ||
| After-sales Service | Network Support, Return And Exchange | |
| Engineer one-on-one tutoring | ||
| Shipment | By sea,as customer request | |
| Delivery Detail | Usually 20-30days after order confirmed | |
Evaporation Capacity(Kg/H) | Steam Consumption (Kg/H) | Cooling water consumption(Kg/H) | Vacuum pressure(Mpa) | Steam pressure(Mpa) | Components |
| 100 | 115 | 1500 | -0.05~-0.08 | 0.03-0.09 | 1.Heating chamber |
| 150 | 170 | 2250 | 2.Evaporation chamber | ||
| 250 | 280 | 3750 | 3.separator | ||
| 300 | 335 | 4500 | 4.Plate condenser | ||
| 350 | 390 | 5250 | 5.collection tank | ||
| 500 | 550 | 7500 | 6.Vacuum pump | ||
| 1000 | 1105 | 16000 | |||
| 2000 | 2200 | 30000 |
