JR Machinery

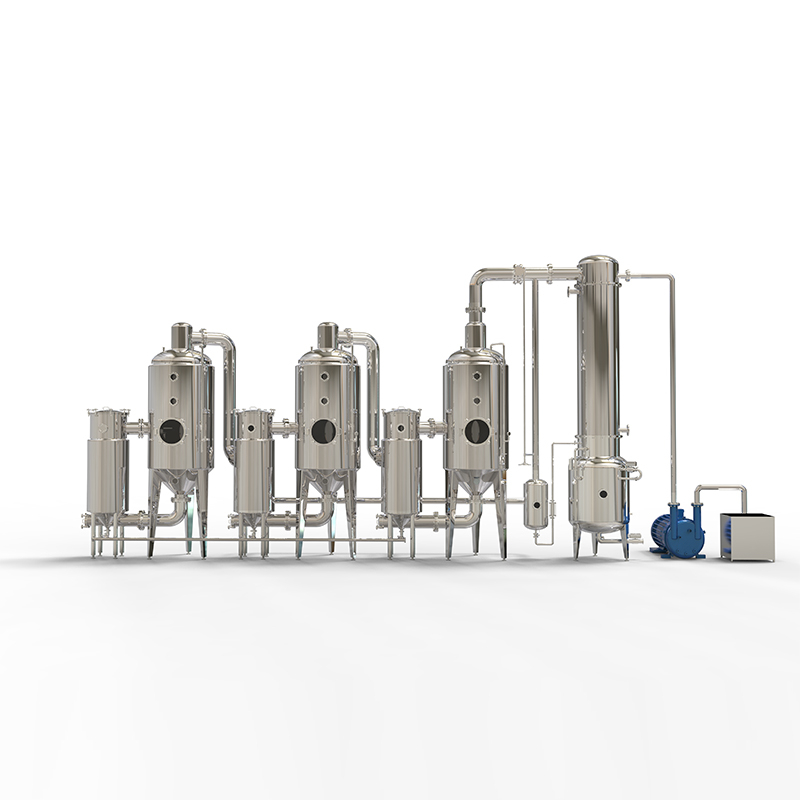

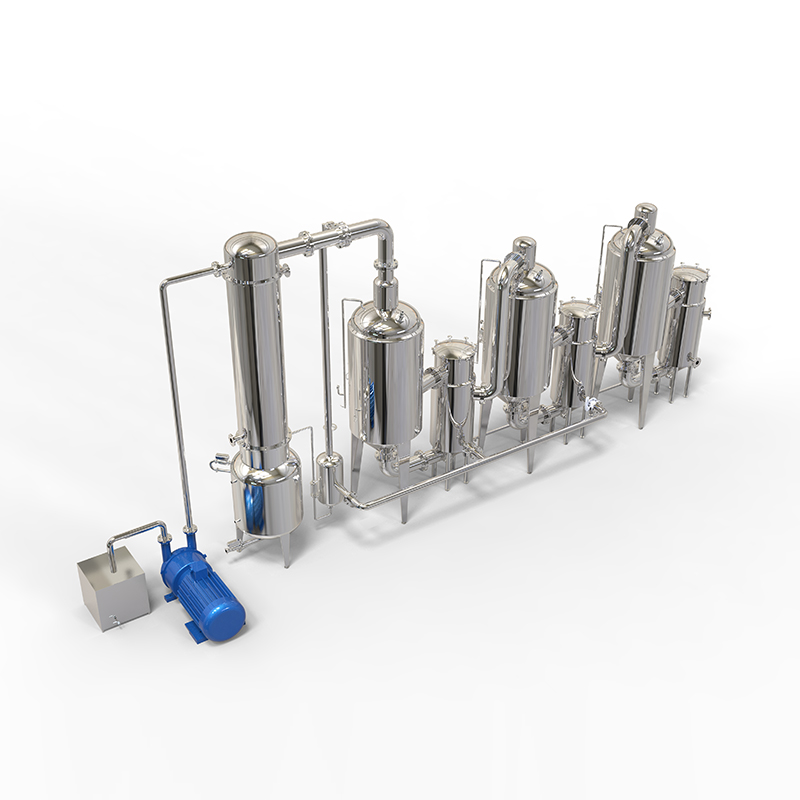

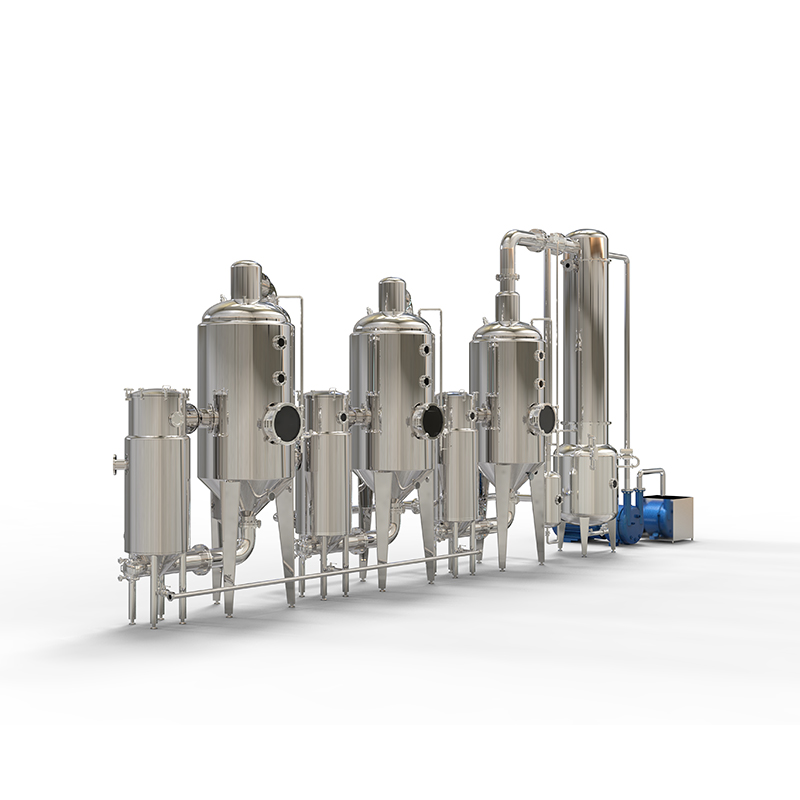

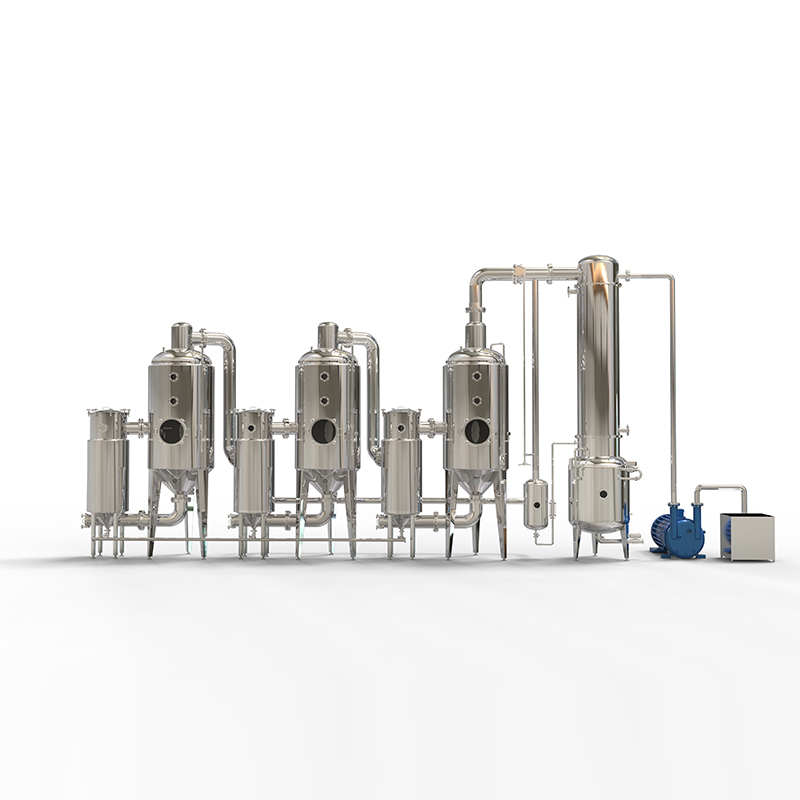

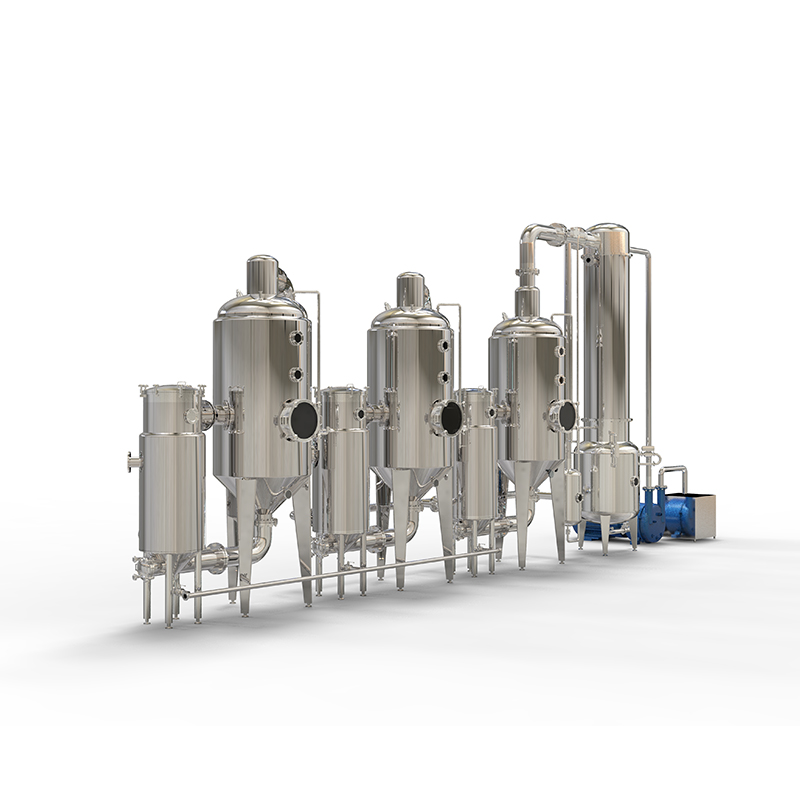

| Title | Stainless Steel Triple Effect Energy Saving Low Temperature Steam Heating Concentrator Vacuum Evaporator | |
| Product Name | Vacuum Evaporator Concentrator | |
| Size | 500L-5000L | |
| Material | SS304,SS316L | |
| Heating Model | Steam | |
| Steam consumption(Kg/H) | 200-2000 | |
| Water consumption(T/H) | 5-25 | |
| Evaporation temperature(℃) | 55-65 | |
| Vacuum pressure(Mpa) | -0.05~-0.08 | |
| Concentration ratio | 1.2-1.3 | |

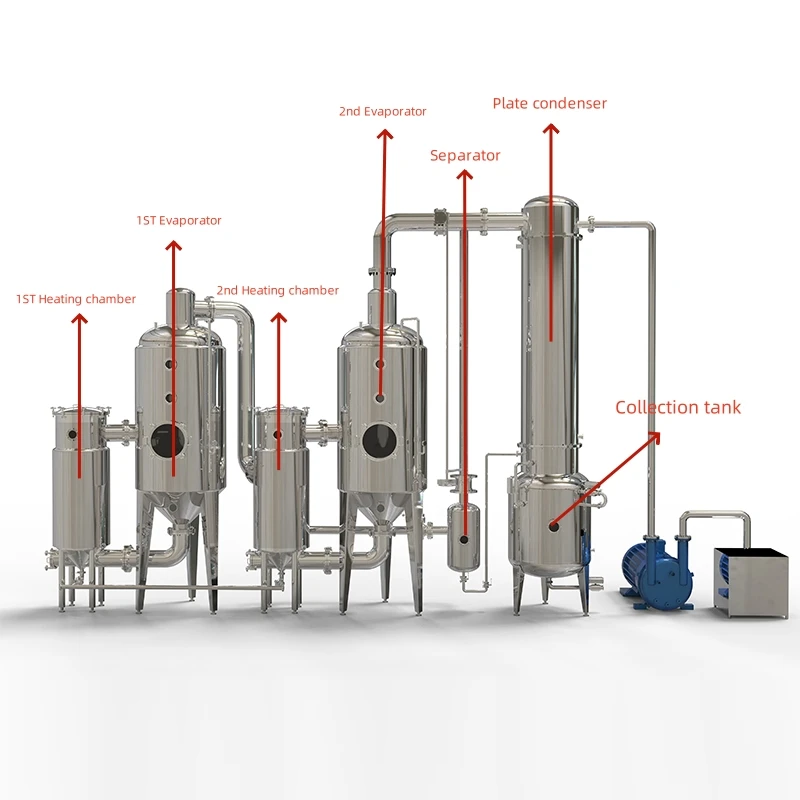

| Tank configuration | Vacuum pump | Collection tank |
| Heating chamber | Evaporation chamber | |
| Condenser | Gas-liquid separator | |
| Advantage | 1. Short concentration time 3. Energy Saving | |
| Processing materials | Juice, Jam, Syrup, Herbal | |
| Application | Herbal, Food industry, Etc | |
Service | Product Service | ODM, OEM,Customized according to drawing |
| Material certificate,Inspection certificate | ||
| After-sales Service | Network Support, Return And Exchange | |
| Engineer one-on-one tutoring | ||
| Shipment | By sea,as customer request | |
| Delivery Detail | Usually 20-30days after order confirmed | |

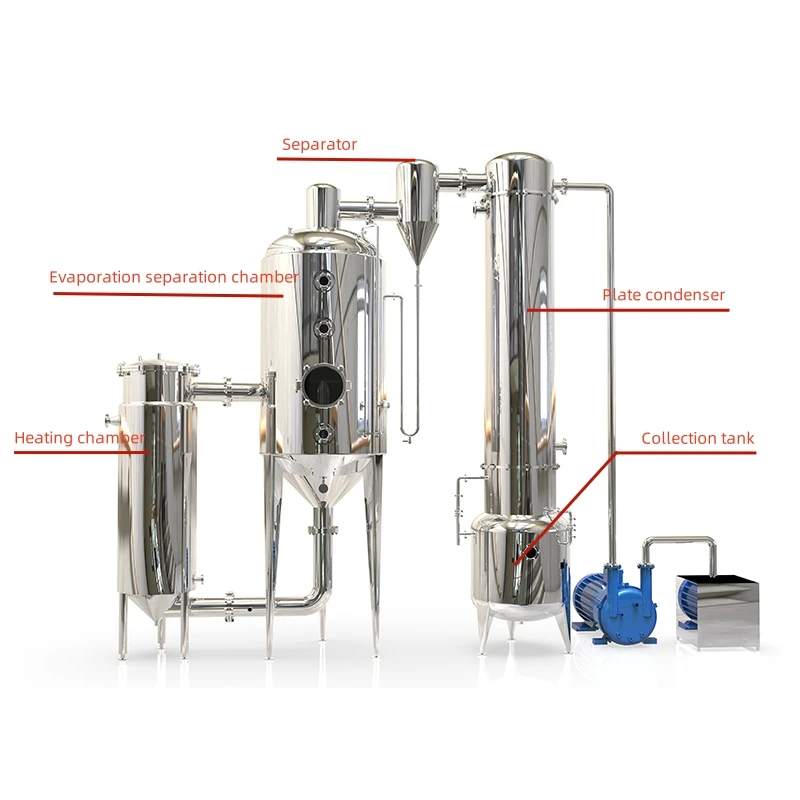

Evaporation Capacity(Kg/H) | Steam Consumption (Kg/H) | Water consumption(T/H) | Vacuum pressure(Mpa) | Evaporation temperature(℃) | Concentration ratio | Components |
| 500 | 200 | 5 | -0.05~-0.08 | 55-65 | 1.2-1.3 | 1.heating chamber |
| 1000 | 400 | 10 | 2.evaporation chamber | |||
| 1500 | 600 | 13 | 3.separator | |||
| 2000 | 800 | 15 | 4.plate condenser | |||
| 3000 | 1200 | 18 | 5.collection tank | |||
| 5000 | 2000 | 25 | 6.Vacuum pump |
